50WD-Q
Brand: JQ
Listing time: April 2026
Model: 50WD‑Q/Y (Long Material)
Bending Axis: N/A
Drive Type: Pneumatic & Hydraulic
Total Power: 0.75KW
Screen size: PLC Control Screen
50WD‑Q/Y Long‑material Chamfering Machine Is Equipped With 0.75kw×4P Main Engine Motor. It Processes Pipes With Diameter Φ8‑Φ50mm And Outer Chamfer For Round Bars Φ8‑Φ30mm. The Wall Thickness Is ≤4mm For Pneumatic Type And ≤8mm For Hydraulic Type. Its Processing Length Ranges From 80‑580mm, And Can Reach Max 2000mm With Optional Installation. Standard Configuration Includes One Standard Cutter Head And One Set Of Clamps. Machine Weight Is 650kg And Dimension Is 1685×850×820mm. Designed For Long‑length And Light‑weight Pipes, It Achieves Length Machining Accuracy Up To ±0.1mm.
Category：Chamfering machine
Product Details
Machine parameters
| Model | 50WD-Q/Y（Long Material） |
| Main engine motor | 0.75kw×4P |
| Processing capacity | Pipe diameter Φ8–Φ50mm，Outer Angle of Round Bar Φ8–Φ30mm |
| Wall thickness | Pneumatic：≤4mm hydraulic：≤8mm |
| Processing length | 80–580mm，Optional for installation, up to the maximum length available as an optional installation.2000mm |
| Standard configuration | One standard cutter head, one set of clamps |
| Machine weight | 650kg |
| Machine size | 1685×850×820mm |
| Characteristics | For pipes with a long length and light weight, the length machining accuracy can reach±0.1mm |

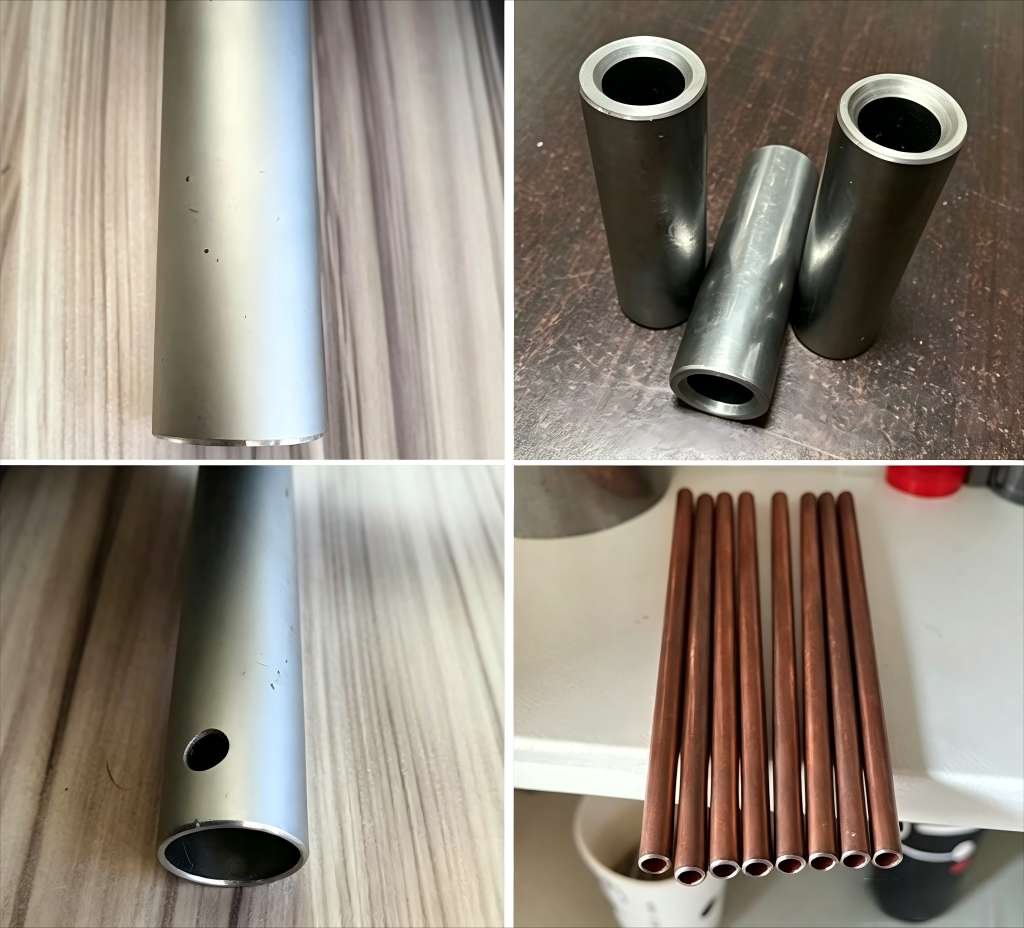

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
