MC-315B Pneumatic pipe cutting machine
Brand: JQ
Listing time: April 2026
Model: MC‑315B
Bending Axis: N/A
Drive Type: Pneumatic
Total Power: 2.4/3.0KW
Screen size: PLC Control Screen
Category：Metal circular saw machine
Product Details
Mechanical characteristics
■ Vertical slide feed type,feed stable and have long tool life.
■ Special design, multiple sets of gear transmission is suitable for heavy cutting, precise stability.
■ The machine structure is firm with small vibration.
■ The cooling liquid automatic cycle to ensure that the workpiece surface smooth.
■ Chip processing,maintenance is simple and easy.
Machine parameters
| Model | MC-275B | MC-315B |
| Master motor | Two-speed motor 2/2.4kw | Two-speed motor 2.4/3.0kw |
| Spindle Type A | RPM60/120 | RPM60/120 |
| Spindle Type B | RPM60/120 | RPM60/120 |
| Suitable blade | High-speed steel saw blade H.S.S BLADE | High-speed steel saw blade H.S.S BLADE |
| Outer Diameter O.D. 250/275mm | Outer Diameter O.D. 250/300/315mm | |
| Cooling water pump | O.D. 250/275mm | O.D. 250/300/315mm |
| Compressed air Applicable Type | Type A and Type B | Type B and Type AC |
| Air Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Weight | Type A 80kg Type B 180kg | Type A 200kg Type B 210kg |
| Machine model | MC-275 B | MC-315 B | ||
| Cutting direction | 90 degree | 45 degree | 90 degree | 45 degree |
| Hollow pipe | 80 | 60 | 100 | 80 |
| Hollow square steel | 60×60 | 45×45 | 90×90 | 80×80 |
| Hollow rectangular pipe | 60×80 | 45×60 | 80×90 | 80×80 |
| Solid rectangular steel | 60×60 | 45×45 | 90×90 | 80×80 |
| Solid shafting | 38 | 25 | 55 | 45 |
| Solid square steel | 38 | 25 | 50 | 40 |

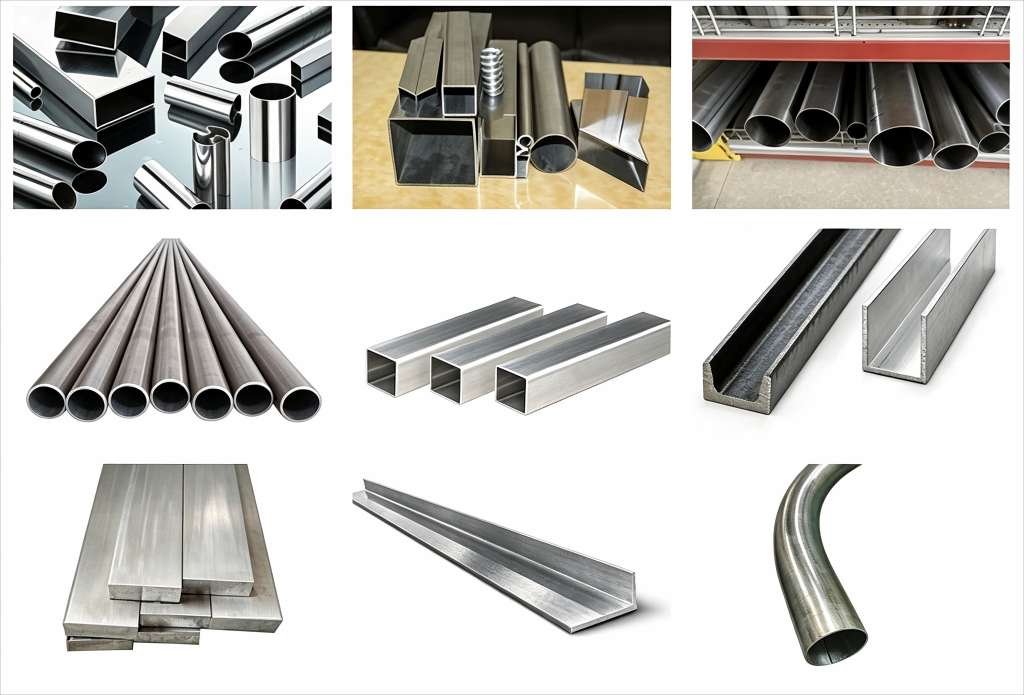

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
