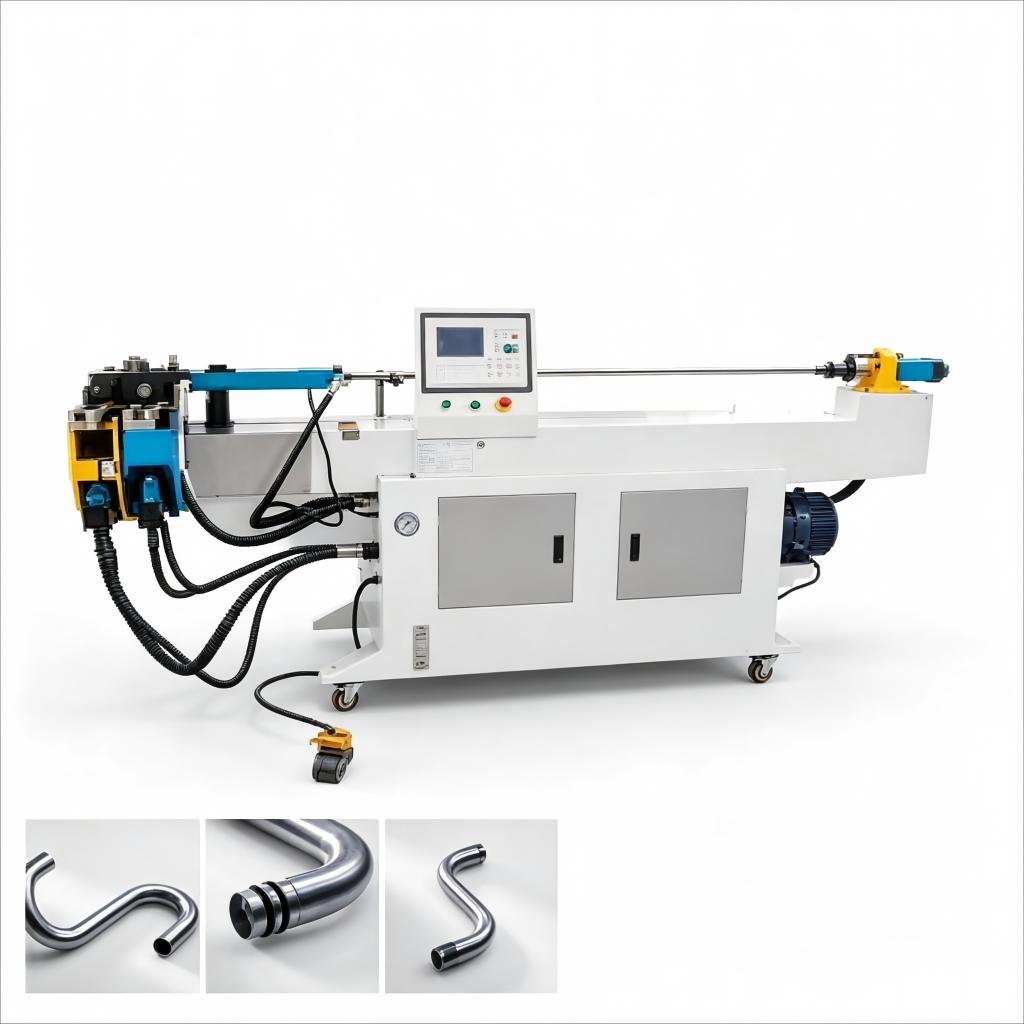

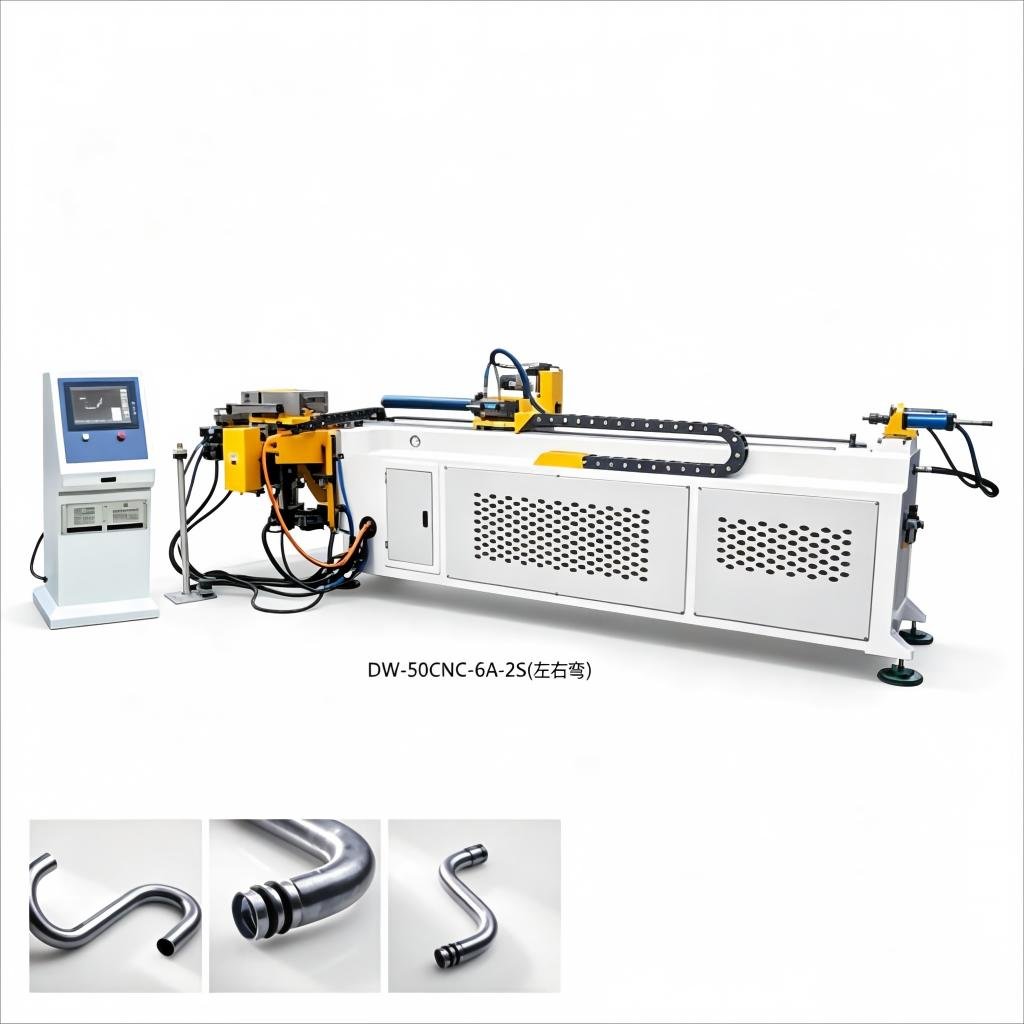

3 Axis CNC Electric Hydraulic Spiral Iron Tube Pipe Bending Machine
Category：Pipe bending machine
Product Details
Mechanical characteristics 3 Axis CNC Electric Hydraulic Spiral Iron Tube Pipe Bending Machine
Main features
* Fully automatic and CNC pipe bending machine
* Equipped with 2 servo motor programmable axis
* Feeding: servo motor drive; Rotation: servo motor drive
* Bending: hydraulic and encoder control; Servomotor with reducer.
* Imported hydraulic system and PLC(standard) unit or IPC(optional).
* Automatic lubrication system for moving areas.
* Self-diagnostic system, detecting the error immediately.
* Multiple groups pipe bending information storage.
* Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long- time work stably under the high temperature.
* Touch screen and human/machine interface control provide user friendly operations.
| Max bending capacity | Ø38mmx2mm |
| Max bending radius | R180mm |
| Min bending radius | According to pipe diameter |
| Max bending degree | 190° |
| Max effective distance of mandrel | 3000mm |
| Feeding method | Clamping/direct feeding |
| Bending speed | Max 90°/s |
| Rotary speed | Max 160°/s |
| Feeding speed | Max 1200mm/s |
| Bending accuracy | ±0.1° |
| Rotary accuracy | ±0.1° |
| Feeding accuracy | ±0.1mm |
| Information inputting method | Working value (Y, B, C) |
| Bending method | Servo bending(3A) |
| Hydraulic motor power | 5.5kw |
| Rotary servo motor power | 0.4kw |
| Feeding servo motor power | 0.75kw |
| Max storage unit (3) | 1000 groups |
| Max oil pressure | 14Mpa |
| Machine weight | 1600kg |
| Machine size | 4200X950X1700mm |

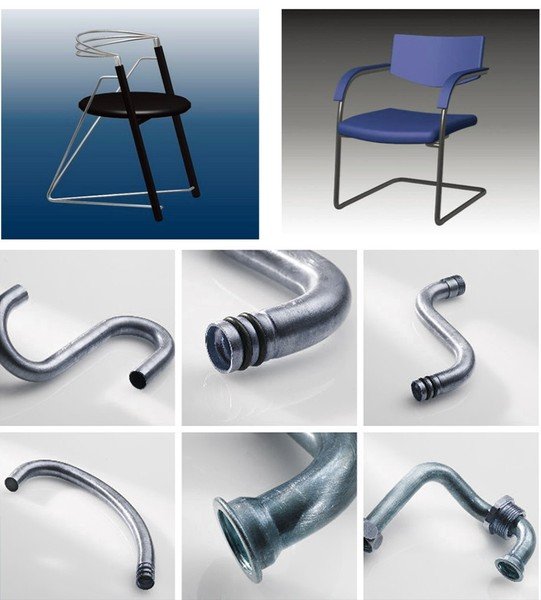

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
