YJ-425CNC servo automatic pipe cutting machine
Brand: JQ
Listing time: April 2026
Bending Axis: N/A
Drive Type: Hydraulic & Servo Drive
Total Power: 5.5KW (Standard)
Screen size: 7-inch CNC Touch Screen
YJ‑425CNC Servo Automatic Pipe Cutting Machine is a heavy‑duty full‑automatic servo pipe cutting machine equipped with a large control cabinet, suitable for thick‑wall pipe cutting. The vertical slideway delivers stable up‑and‑down feeding for long tool service life and stable sawing performance. Adopting European‑style design with multi‑group gear transmission, it realizes stable precision under heavy‑load cutting conditions. The well‑designed feeding system prevents damage to workpiece surface. The unique main clamping structure provides strong and firm clamping force. It adopts a microcomputer controller for easy maintenance. Automatic coolant circulation ensures smooth workpiece cross‑section. Centralized control buttons enable simple and convenient operation. Sawdust is collected centrally for clean working environment. It is equipped with sawing length display, cutting quantity setting & counting function and no‑material shutdown function.
Category：Other machinery
Product Details
Mechanical characteristics
■ heavy duty full-automatic servo pipe cutting machine, large control cabinet, with the characteristics of, thick wall pipe cutting and.
■ the vertical slideway has stable upper and lower feed, long tool life and sawing.
■ European design, multi group gear transmission, suitable for heavy cutting and stable precision.
■ carefully design the feeding system to avoid damaging the workpiece surface.
■ unique main clamp design, strong and firm clamping force.
■ the use of microcomputer controller is convenient for maintenance.
■ the coolant circulates automatically to ensure the smooth section of the workpiece.
■ centralized control buttons, simple and convenient operation.
■ centralized treatment of sawdust is convenient and clean.
■ equipped with sawing length display device, sawing quantity setting and counting device and no material shutdown device.
Machine parameters
| Main specifications/ Model | YJ-425CNC | Remarks | |
| Blade position | 90°（mm） | Automatic feeding, automatic clamping, automatic cutting, tail cutting | |
| □ | 110*110 | ||
| ○ | Φ120 | ||
| ● | Φ50 | ||
| ■ | 50*50 | ||
| Machine size | 3200*1250*2100 | ||
| Machine weight | 1200kg | ||
| Feeding speed | 4s/m | ||
| sawing speed | 6s/time | ||
| sawing accuracy | ±0.2mm | ||
| Maximum clamping stroke | 120mm | ||
| Longest feeding stroke | 1500mm（single time） | ||

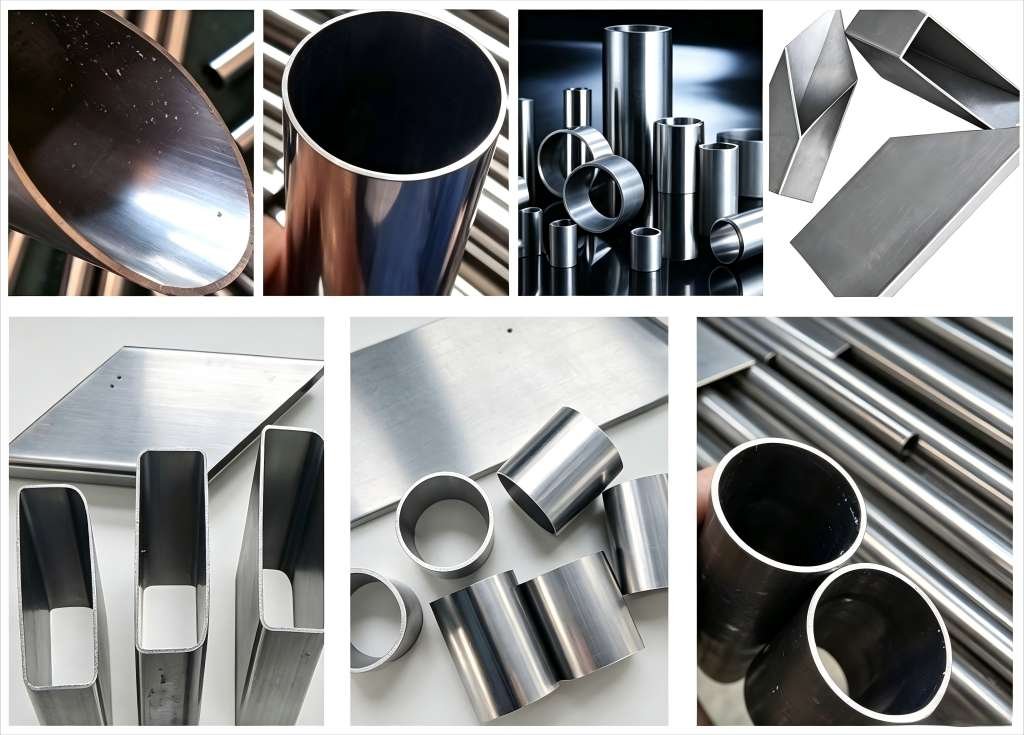

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
