DW-219NC Heavy-Duty Hydraulic NC Pipe Bending Machine
Brand: JQ
Listing time: April 2026
Bending Axis: Multi‑axis
Drive Type: Servo‑hydraulic
Total Power: 4‑55Kw (depends on model)
Screen size: Touch screen panel
Servo motor drives the bending arm for fast acceleration and deceleration with large torque. Precision heavy‑duty linear rolling bearings are adopted for press touch, press touch boost system and centerline radius adjustment system. The trolley uses servo‑motor direct‑driven rack and pinion for high precision and reliability. It supports self‑calibration pressure and quick automatic positioning setting. Three‑station platform can process multiple curvatures, multiple diameters, mixed bends and rectangular polygon tubes. Equipped with semi‑automatic or automatic feeding table. Position‑controlled pipe assist system is suitable for small radius and complex elbows. Power‑assisted mold replacement makes mold change simple and efficient. Suitable for steel, copper, stainless steel and furniture metal pipe processing.
Category：Pipe bending machine
Product Details
Mechanical characteristics
DW-50NC pipe bending machine.
1. Servo motor drives the bending arm to accelerate the movement speed, and obtain rapid acceleration and rapid deceleration,
as well as large torque at the same time. Precision, heavy-duty linear rolling bearings are used in the press touch,
press touch boost system and centerline radius adjustment system;
2. The trolley adopts directly driven rack and pinion and servo motor, which provides the system with high precision and high reliability;
3. Self-calibration pressure with automatic positioning can be set quickly;
4. Three station platform: can process multiple curvatures, multiple diameters, mixed bends and rectangular polygons;
5. Semi-automatic or automatic feeding table;
6. The position-controlled pipe assist system can be applied to the application of small radius and complex elbows;
7. Power assisted mold replacement, making mold replacement simple and efficient.
Machine parameters
NC Pipe Bending Machine For Make Furniture Chair Sofa Tube Bending Machine
| Parameter | DW38NC | DW63NC | DW89NC | DW130NC | DW168NC | DW219NC | DW273NC |
|---|---|---|---|---|---|---|---|
| Max. Bending Sizes (mm) | 38×2 | 65×3 | 89×12 | 133×14 | 168×24 | 218×24 | 273×24 |
| Max. bending radius (mm) | 200 | 300 | 400 | 650 | 850 | 1050 | 1200 |
| Max. bending angle (°) | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Max. mandrel length (mm) | 1700 | 2400 | 4000 | 5500 | 6000 | 6500 | 7000 |
| Bending mod | Hydraulic Bending | Hydraulic Bending | Hydraulic Bending | Hydraulic Bending | Hydraulic Bending | Hydraulic Bending | Hydraulic Bending |
| Hydraulic pressure (Mpa) | 12 | 14 | 14 | 40 | 40 | 40 | 40 |
| Motor power (KW) | 4 | 7.5 | 15 | 22 | 33 | 50 | 55 |

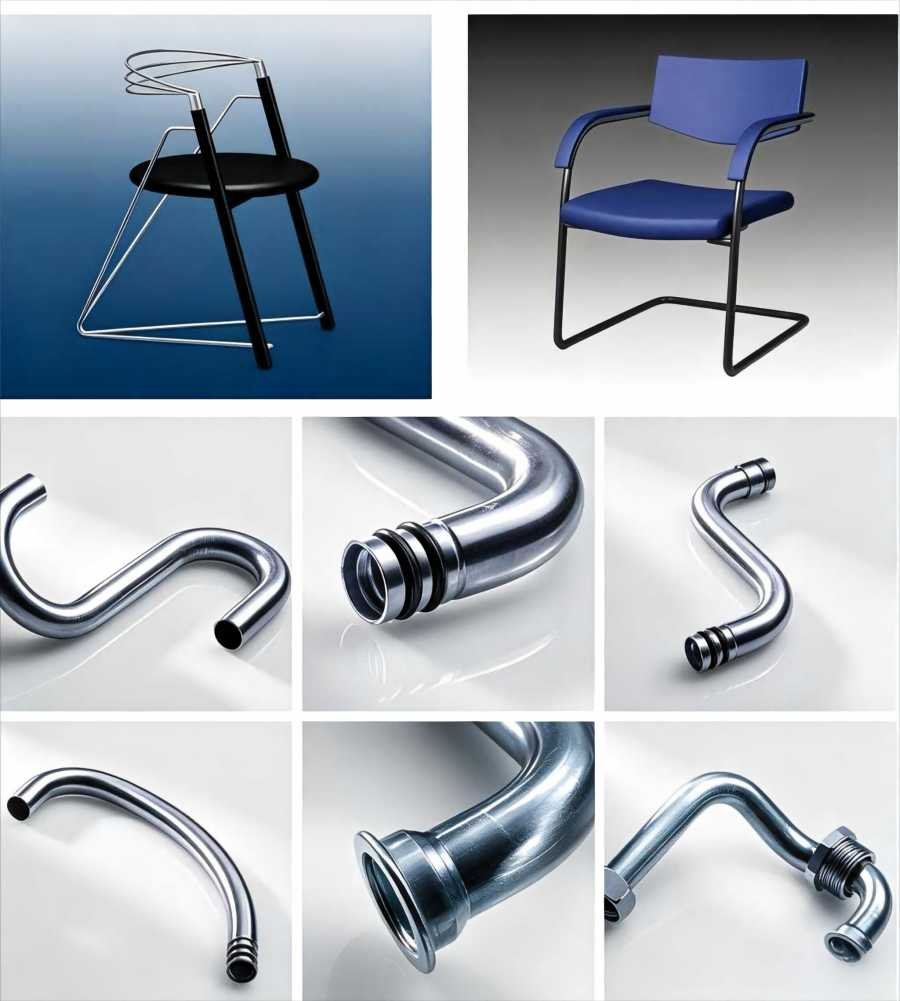

Sample tube display
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
