MC-275A Manul pipe cutting machine
Brand: JQ
Listing time: April 2026
Model: MC‑275A
Bending Axis: N/A
Drive Type: Pneumatic
Total Power: 2.0/2.4KW + 40W
Screen size: PLC Control Screen
MC‑275A Metal Circular Saw Machine Adopts Vertical Slide Feeding Type With Stable Feeding And Long Tool Service Life. With Special Design And Multi‑sets Gear Transmission, It Is Suitable For Heavy‑duty Cutting With High Precision And Stability. The Machine Features Firm Structure And Low Vibration. The Automatic Cooling Liquid Circulation Ensures Smooth Workpiece Surface, While The Chip Disposal Is Convenient For Simple And Easy Maintenance.
Category：Metal circular saw machine
Product Details
Mechanical characteristics
■ Vertical slide feed type,feed stable and have long tool life.
■ Special design, multiple sets of gear transmission is suitable for heavy cutting, precise stability.
■ The machine structure is firm with small vibration.
■ The cooling liquid automatic cycle to ensure that the workpiece surface smooth.
■ Chip processing,maintenance is simple and easy.
Machine parameters

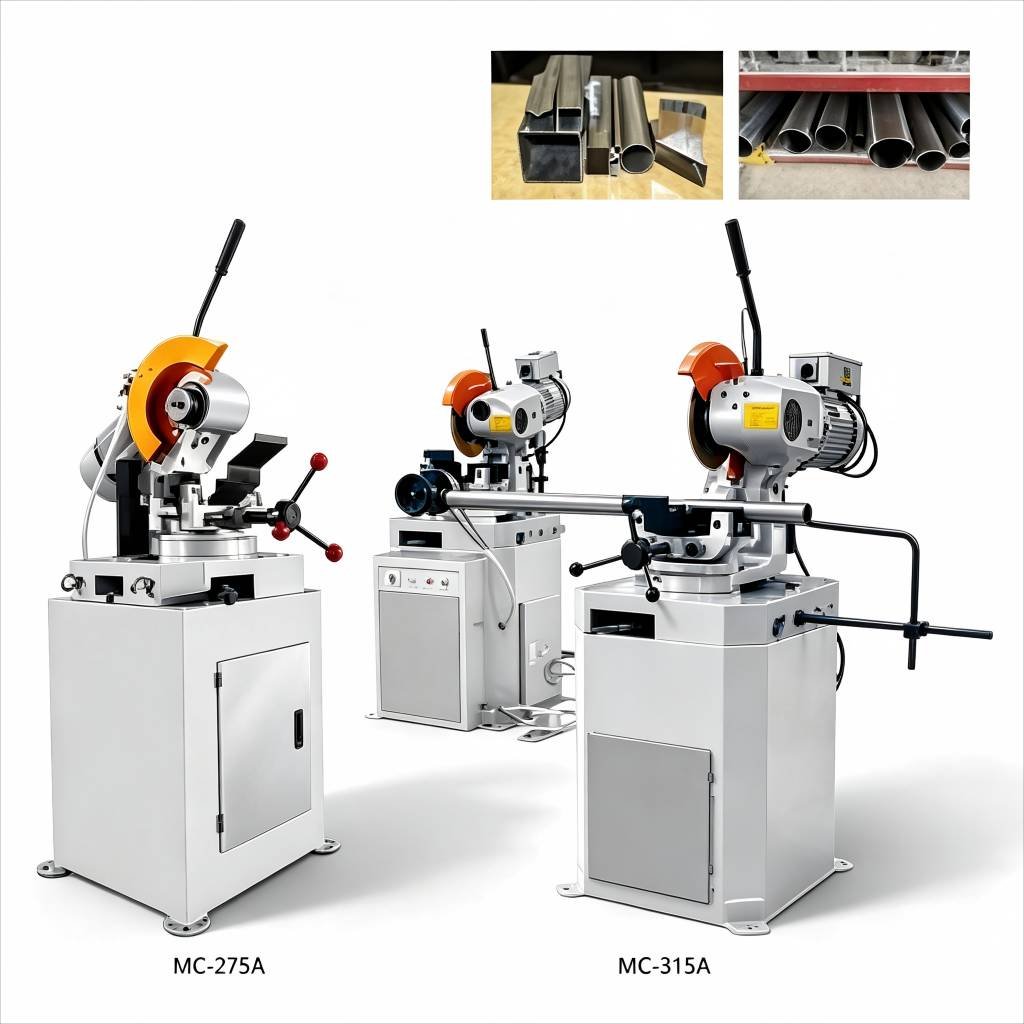

| Model | MC-275A | MC-315A |
|---|---|---|
| Blade drive motor | 2/2.4kw 380V/50HZ | 2.4/3.0kw 380V/50HZ |
| Blade rotational speed | 60/120RPM | 60/120RPM |
| Rotation angle | 90° / 45° | 90° / 45° |
| Clamp type | Double side | Double side |
| Cooling pump motor | 40w | 40w |

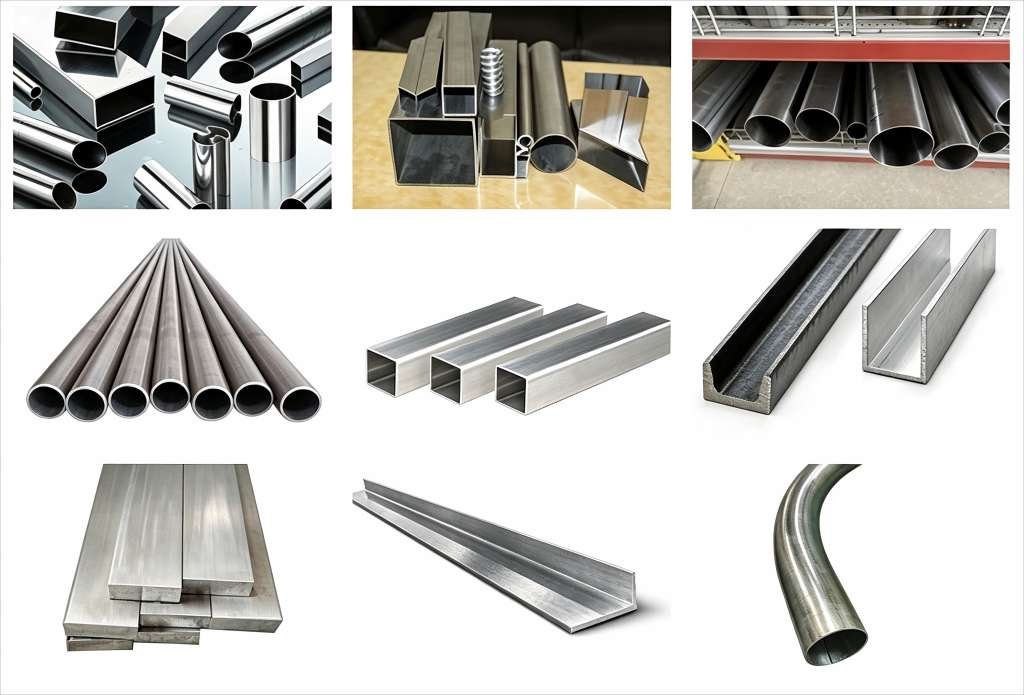

Sample tube display
| Item | Name | Unit | Data | |
| 1 | Sawing Scale | mm | 90 degree | 45 degree |
| square tuber | 60*60 | 45*45 | ||
| round tuber | Φ80 | Φ50 | ||
| round stick | Φ38 | Φ25 | ||
| square bar | 38*38 | 25*25 | ||
| 2 | Feeding | Manual | ||
| 3. | speed | adjustable | ||
| 4 | packing Weight | kgs | 200 kgs | |
| 5 | Packing size | mm | 1050 X 700 X 1580mm | |
Frequently Asked Questions
Our CNC pipe benders, tube cutting machines and tube end forming machines process carbon steel, stainless steel, aluminum and copper. They handle round, square and rectangular tubes for furniture, auto parts and engineering machinery industries.
We offer customized machines based on tube specifications, bending angles, forming processes and automation levels. Multi-station composite functions are available to fit your exclusive production workflow.
All CNC models adopt intelligent control systems with easy program storage. Stable repeat machining accuracy reduces reject rates, ideal for mass continuous production.
We design fully automatic pipe processing lines integrating cutting, end forming and bending. Seamless process connection cuts labor costs and improves overall production capacity.
CNC pipe benders enable one-step multi-angle forming and small-radius bending. They avoid tube wrinkling and collapse, suitable for complex special-shaped pipe workpieces.
Tube cutting machines deliver flat, burr-free cutting surfaces. Tube end formers support flaring, shrinking, bulging and other end processes, enabling multiple pipe end forming operations on a single machine。
